Bosch Professional
Special Order
Bosch Professional

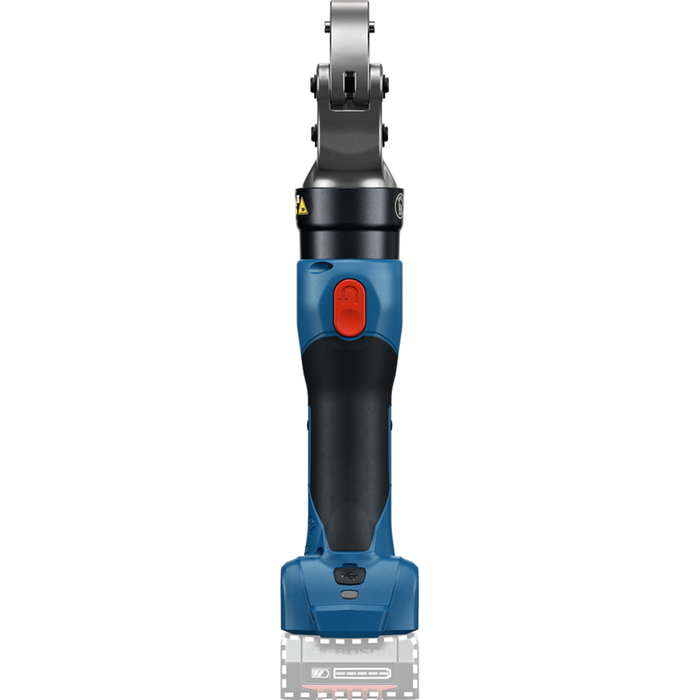

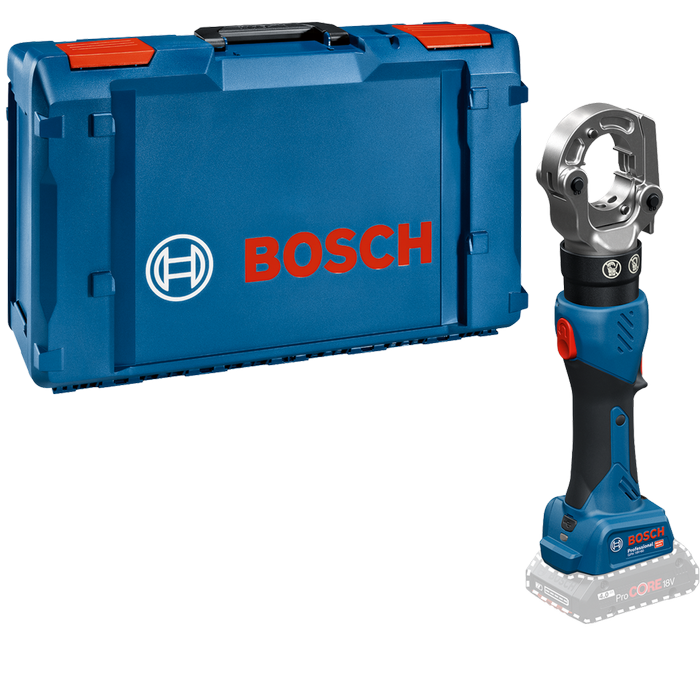

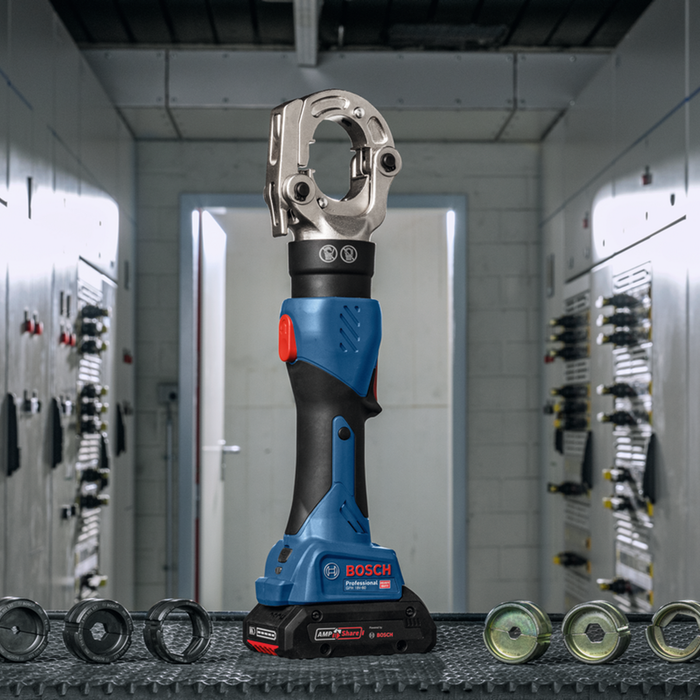

Bosch 18V 60kN Hydraulic Crimping Tool - Skin Only

I/N: 1023290

$3,499

How to purchase

Special Order

This item can only be purchased online or in-store from the Special Orders desk. Learn more(opens in a new tab)

Click & Collect

Select a store for availability

In-store

Select a store for availability

Delivery

Enter postcode or suburb for estimate

  • Reliable hydraulic crimping with quality control through visual feedback on status LED

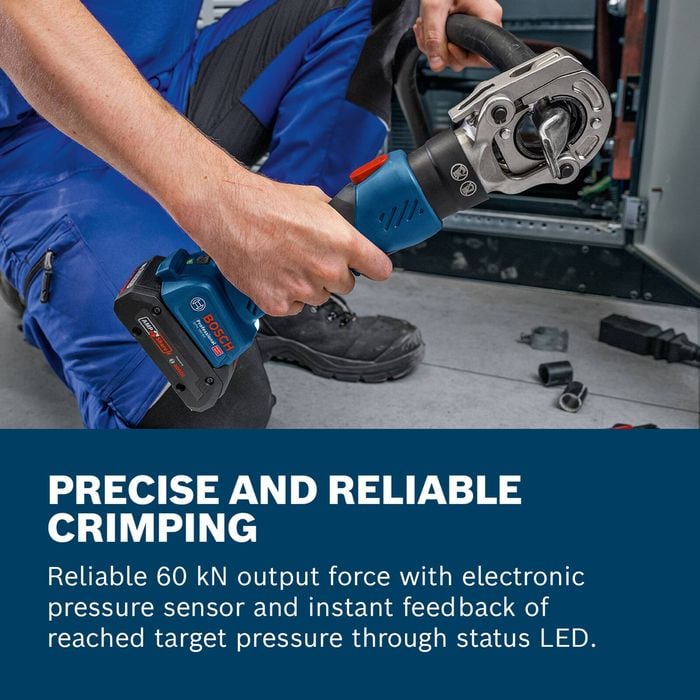

  • Precise monitoring of pressure through electronic pressure sensor

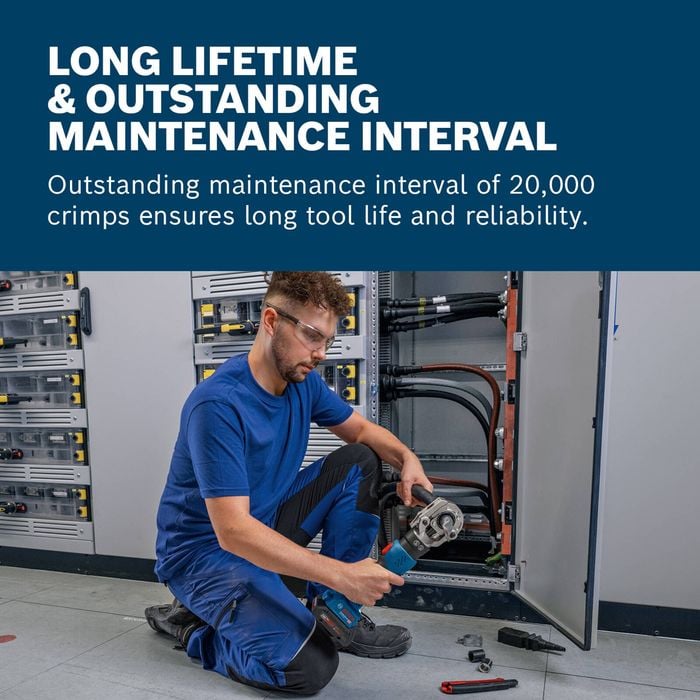

  • Long lifetime with outstanding maintenance interval of 20,000 crimps
  • Comfortable to use thanks to ergonomic design with 340-degree rotatable crimping head and optimized center-of-gravity

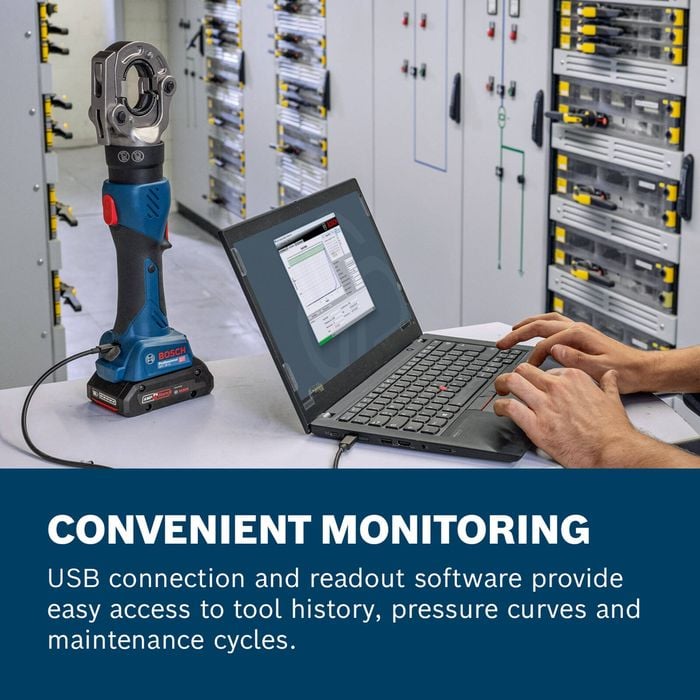

  • Convenient overview of tool’s crimping history, important parameters, and maintenance intervals through USB connection and read-out software

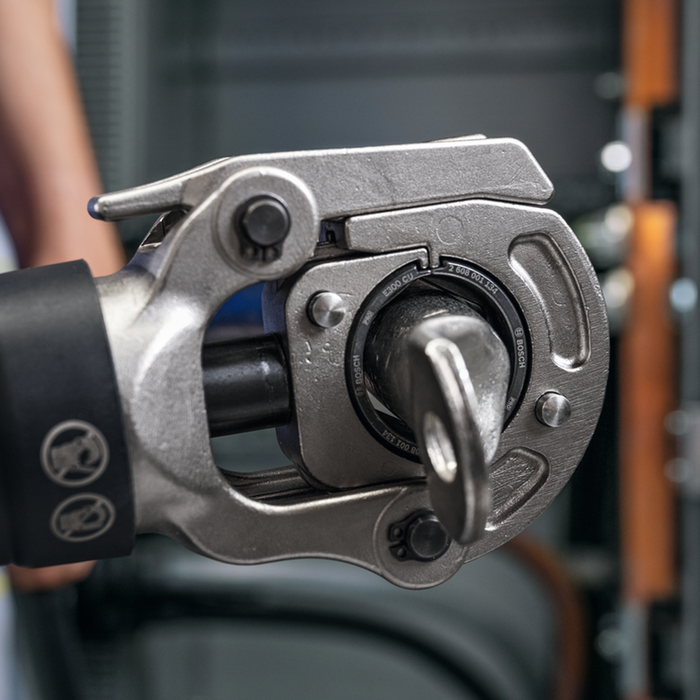

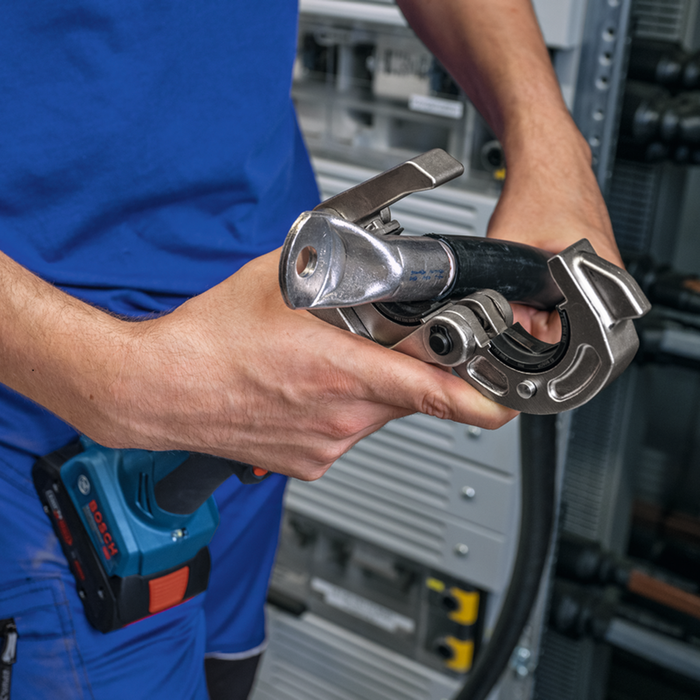

If you are looking to crimp cable lugs onto copper or aluminium cables, the GPH 18V-60 crimping tool is an ideal choice with its consistent pressure and instant feedback. The tool provides reliable and constant 60kN output force thanks to an electronic pressure sensor that monitors pressure levels. The status LED conveniently indicates reached target pressures, tool status, and maintenance. Additionally, with the manual pressure release function, you can always retract. The GPH 18V-60 is suitable for crimping cable lugs onto copper and aluminum cables up to 300 mm². The USB connection and read-out software (free and available to download below) offer an overview of the tool’s crimp history, error messages and maintenance needs. Each tool comes with a certificate that guarantees 100% end-of-line quality control. Specifications: Crimping force max: 60 kN Crimping range max: 300 mm² Crimping range min: 6 mm² Head rotation: 340 ° Stroke length max: 17 mm Automatic retraction: Yes Connecting material Cu and Al: Yes Maintenance interval: 20.000 cycles Manual pressure release: Yes Manual retraction stop: Yes USB connector: Yes Read-Out Functionality: Yes Work light: Yes Automatic pressure limitation and monitoring: Yes USB mode: USB 2.0 Crimping time: 2 s to 5 s (depending on cable cross-section)
