Triumph Building Products

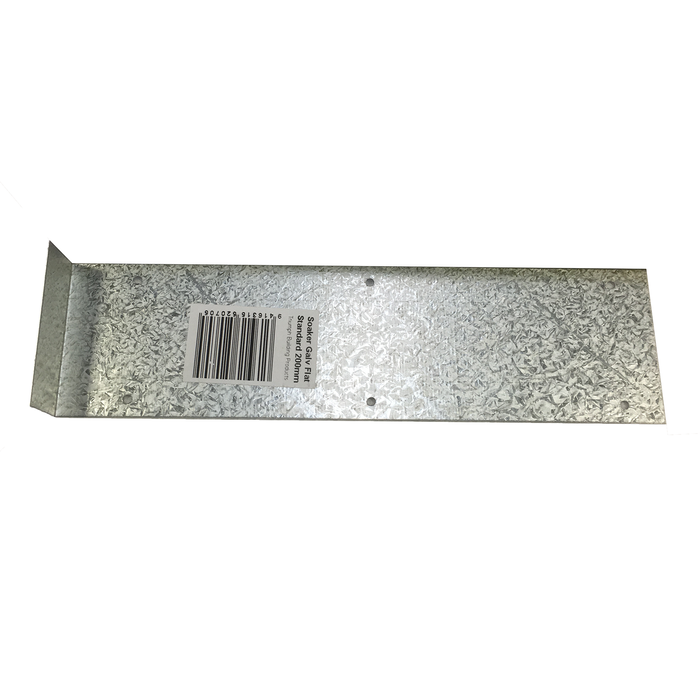

Triumph 200mm Standard Galvanise Flat Soaker

No reviews yet

I/N: 0626807

Triumph 200mm Standard Galvanise Flat Soaker
No reviews yet

I/N: 0626807

$1.59

Select your preferred purchase method

StoreFind your item in store

We are unable to determine your nearest store

Features

  • Galvanised steel at 0.55 mm gauge
  • Complies with E2/AS1 and the NZ Building Regulations
  • Designed to fit a join in 200 mm timber board at 13mm thickness
  • Pre-drilled nail holes

Soakers are an integral part of weatherboard construction as they are an effective way of keeping water from gaining access to the ends of weatherboards when butted up on external corners.
When selecting soakers it is important to get the correct sizing and soaker material to match the cladding. Galvanised soakers should not be used on cedar weatherboards due to the interaction of natural acids in the timber and the metal. In this instance copper or stainless steel are recommended.
To ensure a correct fit the soaker selected should be appropriate to the profile of the weatherboard and its width. The soaker will need to cover the exposed wall but not the full width. In other words a 150mm board will use a 135mm deep soaker with a return of 18.5mm if it is a standard thickness board. This allows for the timber to overlap but not to cover the drain channel.

Details

Dimensions



Width

Height

Depth

Product

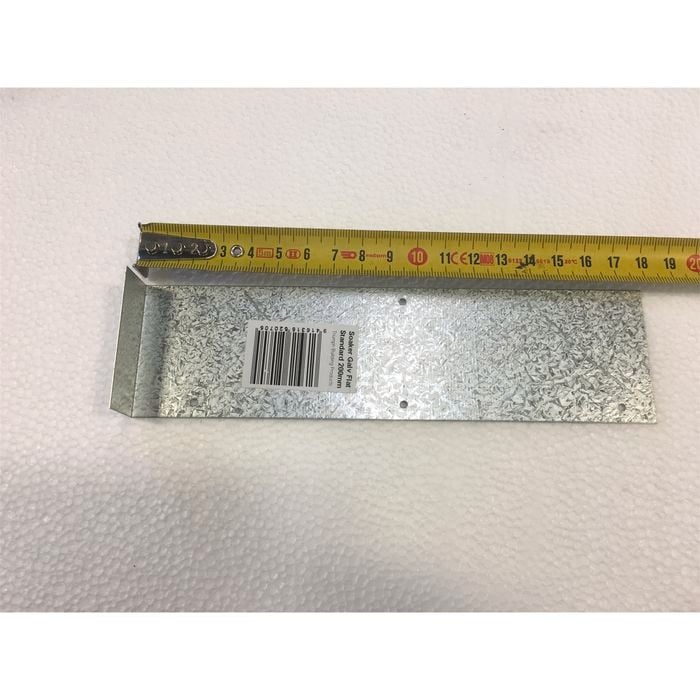

45mm18.5mm200mm

Package

50mm20mm180mm

Specifications

Colour
Unpainted
Model Name
Galvanised steel Flat standard soaker 200mm
Model Number
T-52070
Material
Galvanised steel
