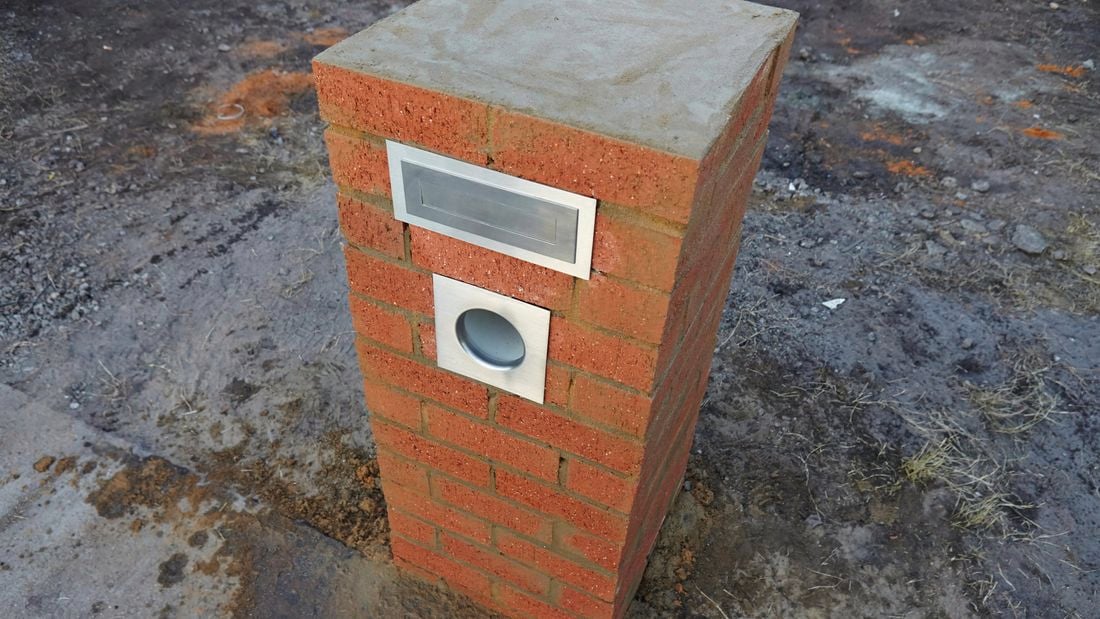

A finished brick letterbox at the edge of a lawn

Overview

A brick letterbox makes a great feature in your front yard and will add plenty of street appeal to your home. It's easy to build one yourself with this step-by-step guide. We'll show you how to mix the cement and mortar, lay bricks evenly, and install the letterbox components.

Steps

1Choose a spot, measure and mark out area

Select a suitable spot for your letterbox. Make sure you check with local authorities to get specifications on your footing and the slab. Measure out the area you want to build your letterbox. This will be determined by the size you want your letterbox to be and regulations from the local authorities.

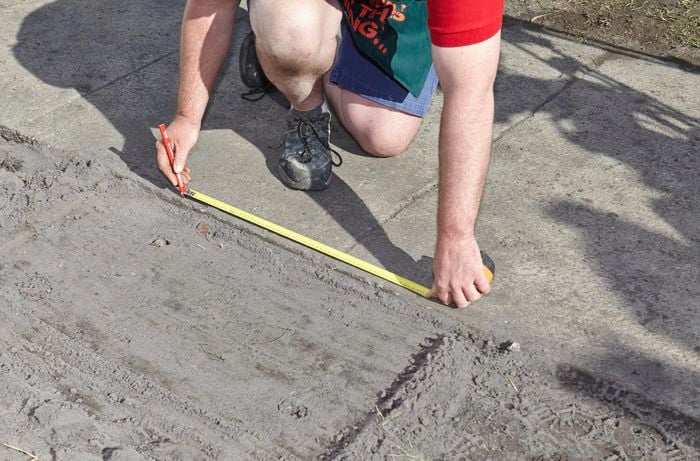

A Bunnings team member measuring and marking out the position of a brick letterbox

2Dig out the footings

Once you've marked out your measurements, start digging out the footing in preparation for the slab. Make sure you check for any pipes or cables that may be running under the ground. Once you've finished digging the footing. Make sure you check the depth is going to be the right measurements for your slab.

Footings being dug out for a brick letterbox

3Make the slab

Pour the concrete into a wheelbarrow and add some water. Using your spade, mix the concrete and water together. Add more water or concrete as you need to get a thick, toothpaste consistency. To create the slab, pour your concrete mix into the footing that you dug out earlier. Leave enough space at the top to fill in later. Now it's time to level off the concrete slab. Start by using your spirit level to even up the concrete mix. Once the level of your slab is even, take the trowel and use it to smooth over the concrete mix. Then leave it to set for 24 hours.

Dry concrete being emptied into a wheelbarrow

4Set out the bricks

Once the concrete is set, set out where you want the bricks for your letterbox to go. Make sure you leave 10mm space between the bricks. Take your tradies square and use it to check that each corner of your brick layout is even. Take your pencil and draw an outline onto the slab around your brick layout. Then remove the bricks.
Person laying out bricks.

5Prepare the mortar

Mix your mortar according to the directions on the bag. Once you're happy with its consistency, take your brickies trowel and feather out some mortar on the concrete slab over the area where you plan to lay your bricks. Make sure you can still see the outline you made earlier.

6Lay the first brick

Now sit your first brick on the mortar, making sure that it's inside the outline you made on the slab. Place the spirit level on top of the brick to make sure it's level. Use the handle on your trowel to tap it down when you need to make adjustments.
Person laying a brick.

7Lay first course of bricks

Lay down the rest of the bricks by adding more mortar to the slab and a layer of mortar on the end of each brick as you go. Remove any excess mortar and check the levels for each brick. Lay some bricks in the middle so that you don't end up with a hollow pier. You don't have to worry about levelling them.

8Build up the pier

Start adding mortar to each layer of bricks, and laying the rest of them down to build up the pier of the letterbox. Remember to stagger the bricks over the joins as you go. This means laying each brick over a previous join, rather than lining the bricks up end to end. Remember to check the levels of each brick and make adjustments if needed. It's also a good idea to check that the sides are straight. Place your spirit level vertically against the courses as you build them up to ensure they're in line with each other. You should also use your tradies square to make sure the corners are all square and make adjustments if needed.

9Make the newspaper holder

Lay enough courses to the height you want for a newspaper holder. Measure the width of your brick letterbox and transfer these measurements to the PVC pipe. This will become the slot for your newspapers. Now, take your handsaw and cut the PVC pipe to length. Remember to wear your safety gear.

10Attach the ends to the pipe

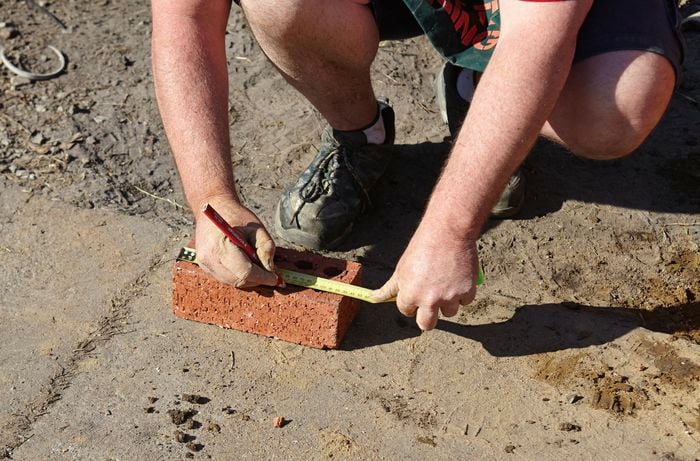

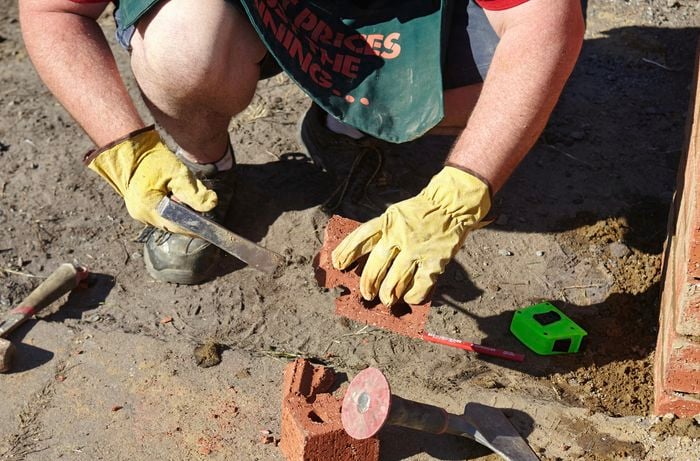

Add the metal openings to the end of your pipe and lay it over the brick pier so that it's centred and square. Then you're ready to start laying the rest of the brick courses around it. Remove the newspaper holder and add some mortar to the brick pier. Then lay down the first course of bricks that will go around the PVC pipe. Check the brick levels as you go. To build up around your newspaper holder, you will need to cut some bricks so that they fit. Measure the length you need on the pier and transfer this to the bricks as you go. Use your bolster and lump hammer to cut the brick.

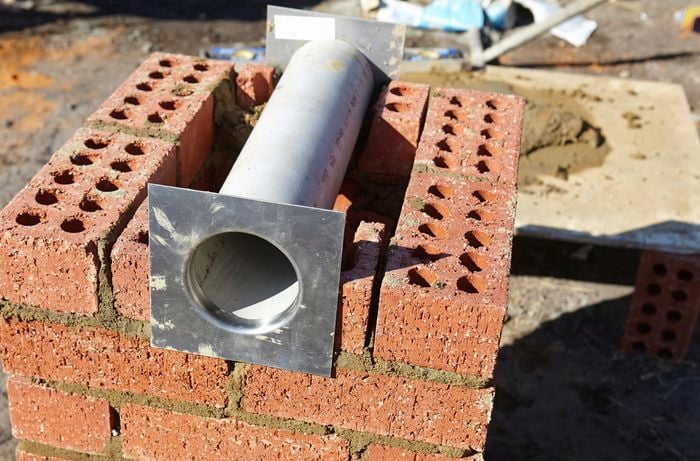

Pipe lying on top of bricks.

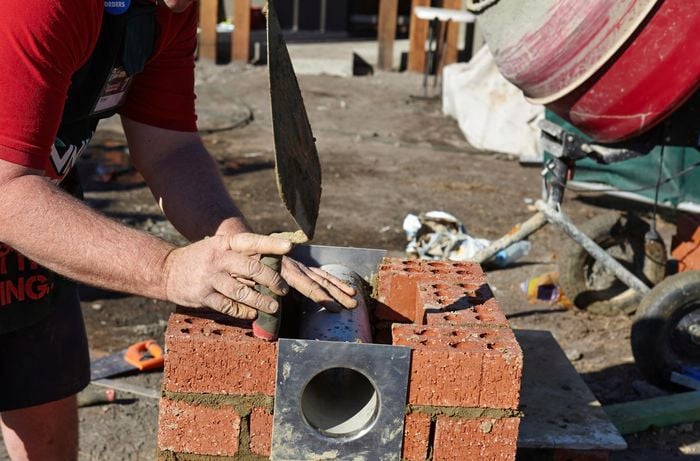

11Install newspaper holder

Lay some mortar in the middle of the gap and place the PVC pipe over it. Fill in the gaps around the sides, make sure the bottoms of the end plates are in line with the top of the course of bricks below it. Start applying more mortar and laying the next course of bricks. You will also need to cut the corner bricks to size to fit around the newspaper holder.

A newspaper tube being added to a brick letterbox in between an opening left in bricks

12Assemble the letterbox

Assemble the letterbox component. The ends slide together so you can adjust the length to suit the size of your brick pier. Centre it on top of the brick pier and make sure the ends overlap flush with the edges of the pier.

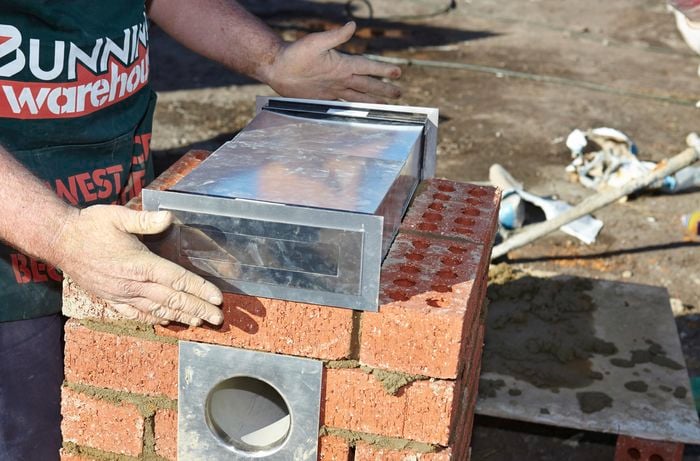

A steel mail slot being added to a middle layer of a brick letterbox

13Lay more bricks over letterbox

Add more mortar and lay further courses of bricks over the letterbox component until you're happy with the look.
A steel mail slot being added to a middle layer of a brick letterbox

14Render top of letterbox

If you want to, you can render the top the letterbox. Add a layer of concrete and smooth it over with a trowel. If you prefer the raw brick look, then just add mortar to the gaps in your bricks and smooth it over.

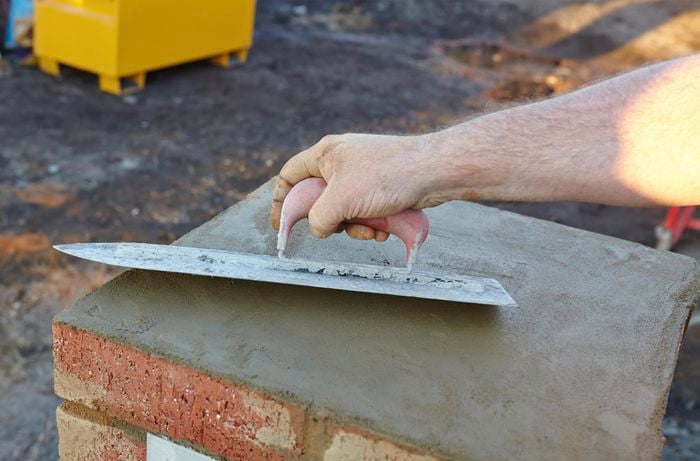

Cement on top of a brick mailbox being smoothed out with a trowel

15Remove any excess mortar

Use your sponge and brush to remove any excess mortar for a clean, professional finish.

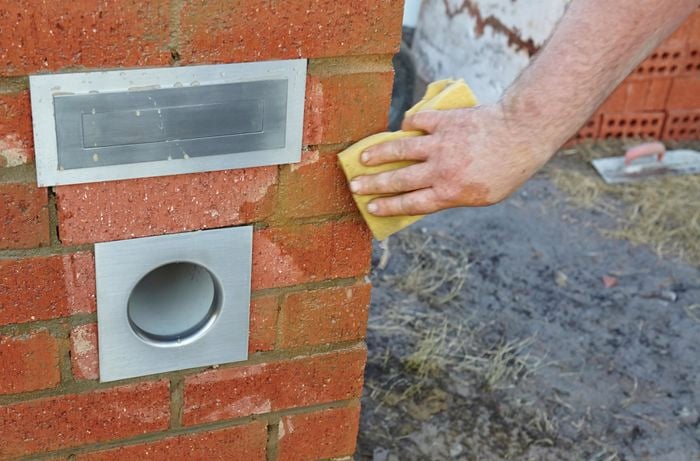

Excess concrete being cleaned off the sides of a brick letterbox
