Overview

Bar stools are a great addition to any kitchen or outdoor living area. With just a few pieces of dowel and some plywood, you can make them yourself and completely transform the look and function of a space.

Steps

1Cut your timber

The first step is to cut all the timber. Here's our cut list for this project:

30mm plywood

  • 300mm diameter circle (seat)

35mm F17 Tasmanian oak dowel

  • 700mm x 4 (legs)

25mm F17 Tasmanian oak dowel

  • 230mm x 2 (supports)
  • 240mm x 2 (supports)

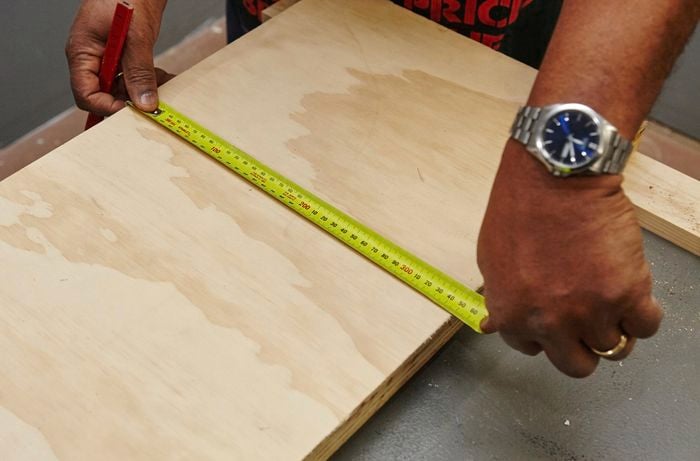

2Measure and mark for the diameter of the stool top

Clamp the ply to the workbench. Measure and mark the ply to find the centre point. We're making our bar stool seat 300mm in diameter. Drill a hole in the centre to attach the router arm. Set the router arm to 150mm.
DIY Step Image - D.I.Y. bar stools . Blob storage upload.

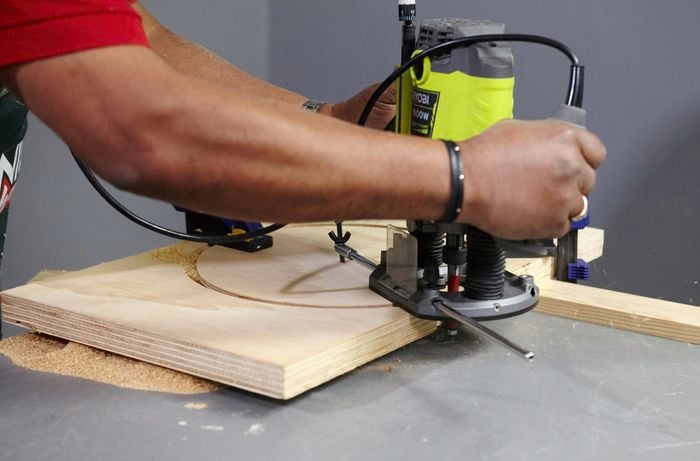

3Cut out the stool top

Screw the router arm into the centre point. Place timber offcuts under the ply to allow enough room to make the cut. Clamp the ply in place so that it can't move. Cut out the top of the bar stool with the router.
DIY Step Image - D.I.Y. bar stools . Blob storage upload.

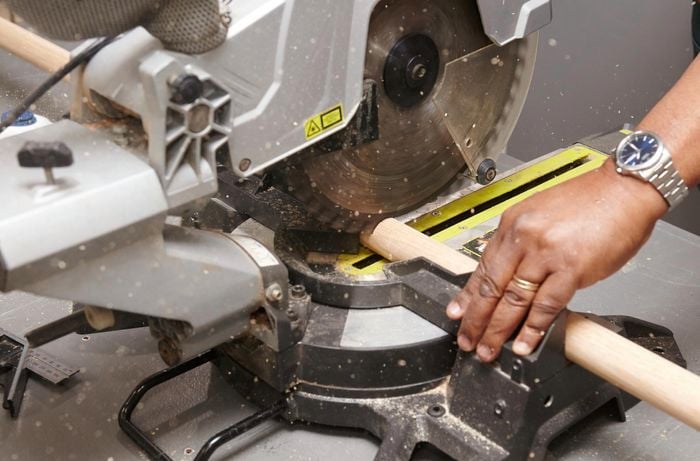

4Cut the dowel

Use the mitre saw to cut the dowel to a manageable length.
DIY Step Image - D.I.Y. bar stools . Blob storage upload.

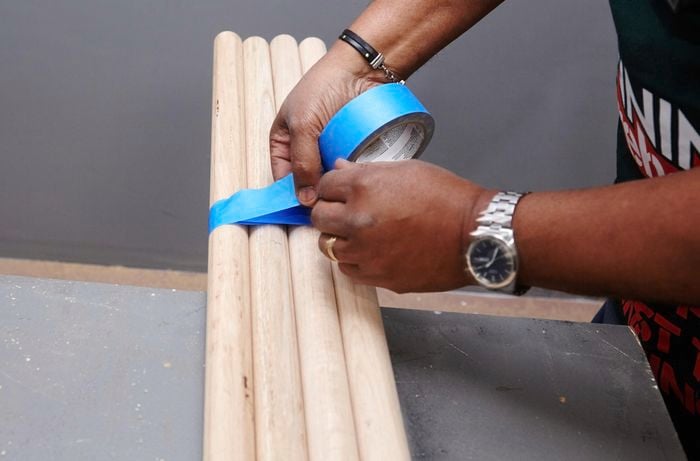

5Tape the legs together

Lay the 4 legs on the workbench and use masking tape to secure them.
DIY Step Image - D.I.Y. bar stools . Blob storage upload.

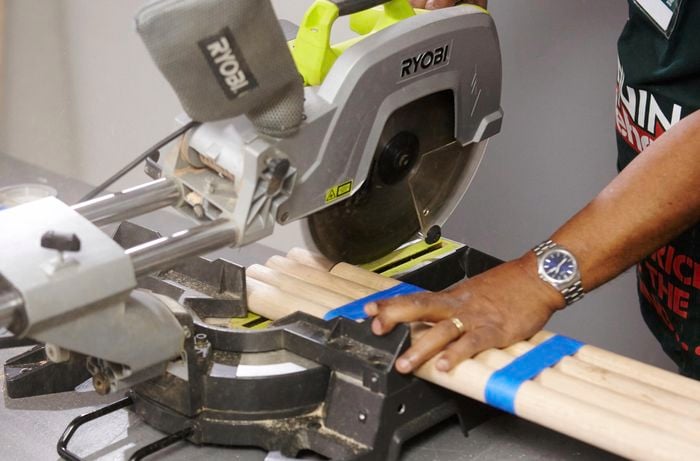

6Cut the legs

Set the mitre saw to a 15-degree angle. Cut the 4 taped legs near the end.
DIY Step Image - D.I.Y. bar stools . Blob storage upload.

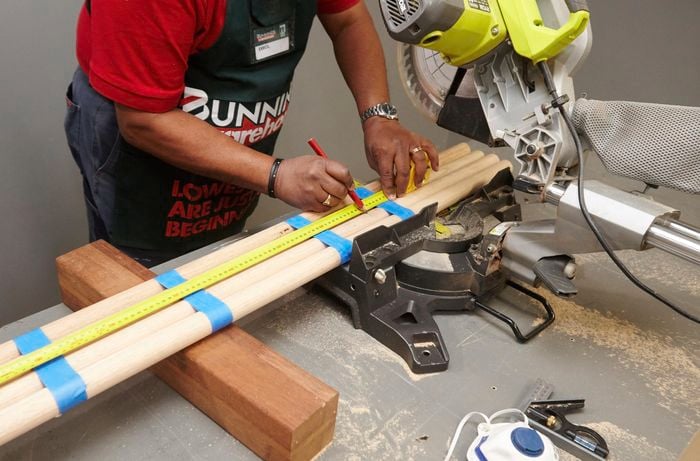

7Measure and mark for the length of the legs

With the legs still taped together, measure and mark the length of the legs for the bar stool. Ours were 700mm.
DIY Step Image - D.I.Y. bar stools . Blob storage upload.

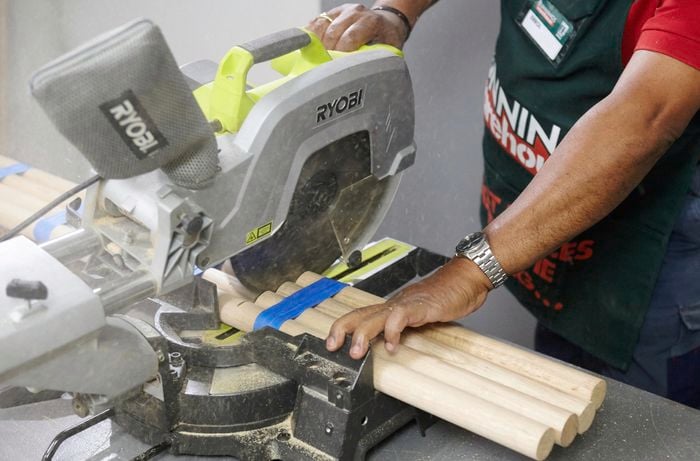

8Cut the legs to size

Make sure the mitre saw is set to a 15-degree angle. Cut the 4 legs for the stool to size.
DIY Step Image - D.I.Y. bar stools . Blob storage upload.

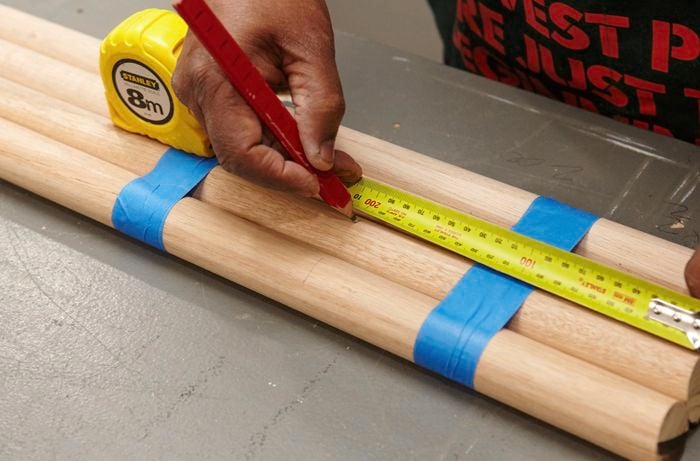

9Measure and mark for the supports

Our first support is 200mm up from the bottom of the legs. Use the set square to measure and mark 200mm up from the bottom of the legs.
DIY Step Image - D.I.Y. bar stools . Blob storage upload.

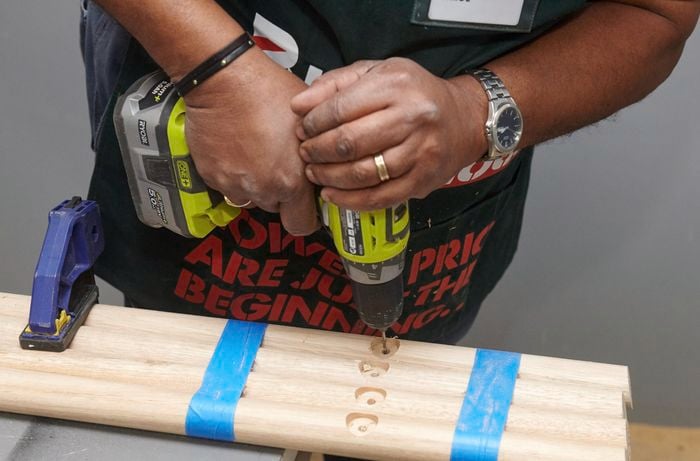

10Drill the holes in the dowel

Clamp the 4 pieces of dowel to the workbench. Use the 25mm spade bit to drill the four holes in the dowel.
DIY Step Image - D.I.Y. bar stools . Blob storage upload.

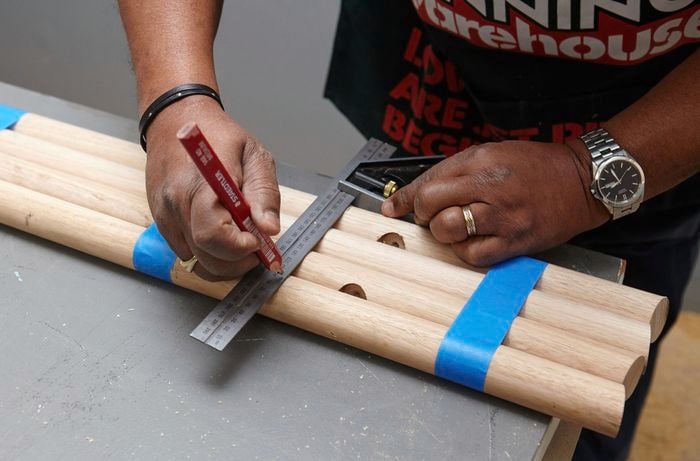

11Measure and mark for the second supports

Rotate the dowel so that the holes you've drilled face each other. Re-tape the dowel so they don't move. Measure and mark 250mm up from the bottom of the legs.
DIY Step Image - D.I.Y. bar stools . Blob storage upload.

12Drill the holes for the supports

Clamp the dowel to the workbench. Use the 25mm spade bit to drill the four holes for the second supports. Drill to a depth of about 10mm.
DIY Step Image - D.I.Y. bar stools . Blob storage upload.

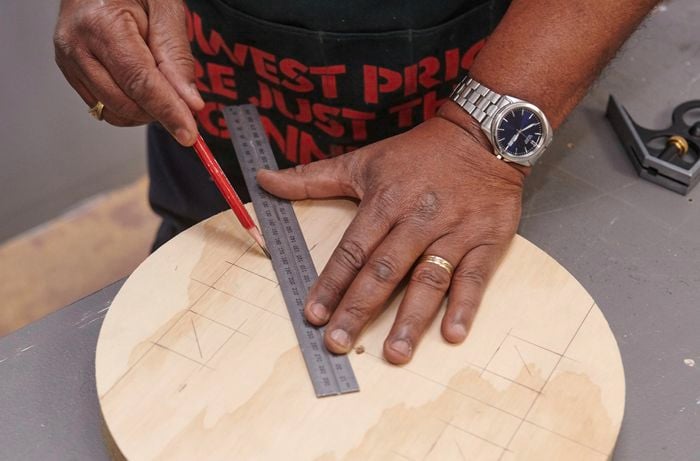

13Measure and mark for the legs in the top of the stool

Find the centre point on the top of the stool and position the four legs an equal distance apart from that point. On a grid, our legs were positioned 50mm and 140mm apart.
DIY Step Image - D.I.Y. bar stools . Blob storage upload.

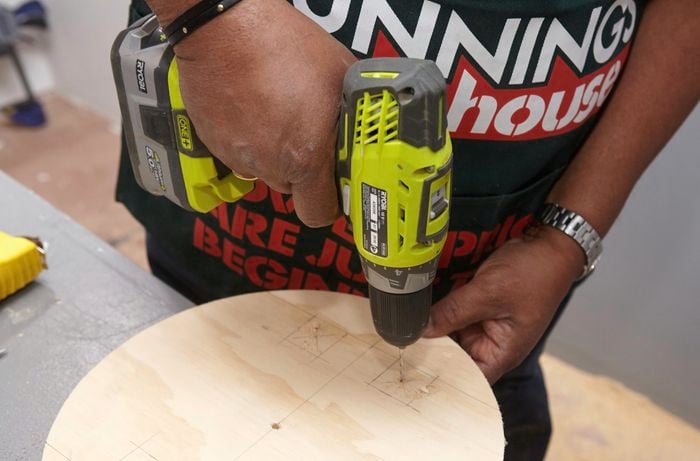

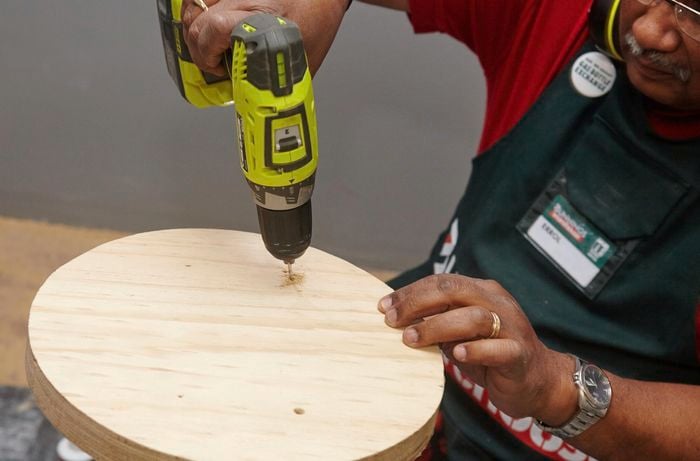

14Pre-drill the holes in the top of the stool

Clamp the top of the stool to the workbench. Use the 2.5mm drill bit to pre-drill the holes for the legs to be attached to.
DIY Step Image - D.I.Y. bar stools . Blob storage upload.

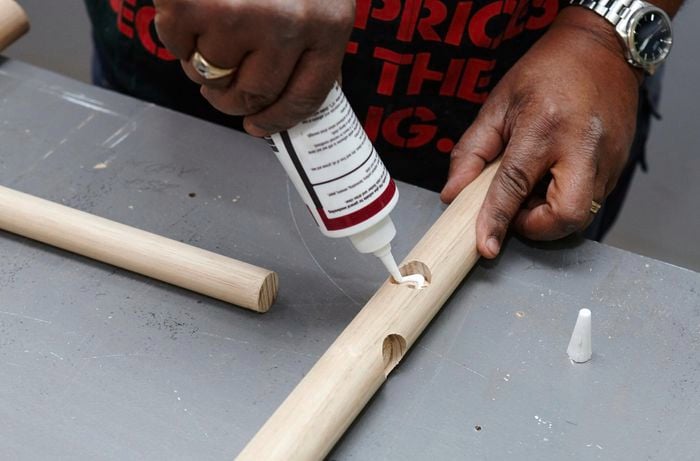

15Apply glue for the supports

Apply the PVA glue into the holes for the supports. Use the 2.5mm drill bit to pre-drill holes to attach the supports.
DIY Step Image - D.I.Y. bar stools . Blob storage upload.

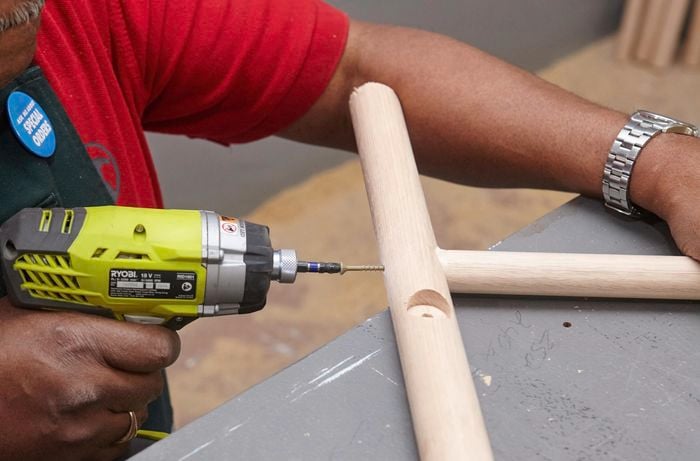

16Attach the supports

Push the supports into the holes in the legs. You might want to use a rubber mallet to gently tap them into place. Use the drill and 30mm timber screws to attach the supports to the legs. Once both sides of the legs for the stool are complete, join them together with glue and screws
DIY Step Image - D.I.Y. bar stools . Blob storage upload.

17Attach the seat to the legs

Apply glue to the top of the legs for the stool. Use the drill and the 40mm timber screws to secure the top of the stool to the legs. Screw from the top of the stool, make sure the tip is just poking out of the base, before screwing into the legs.
DIY Step Image - D.I.Y. bar stools . Blob storage upload.

18Putty any holes

Putty any holes with wood putty. Leave it to dry. Sand the stool with some 120-grit sandpaper. Hand sand the dowel legs and wipe away any dust.
DIY Step Image - D.I.Y. bar stools . Blob storage upload.

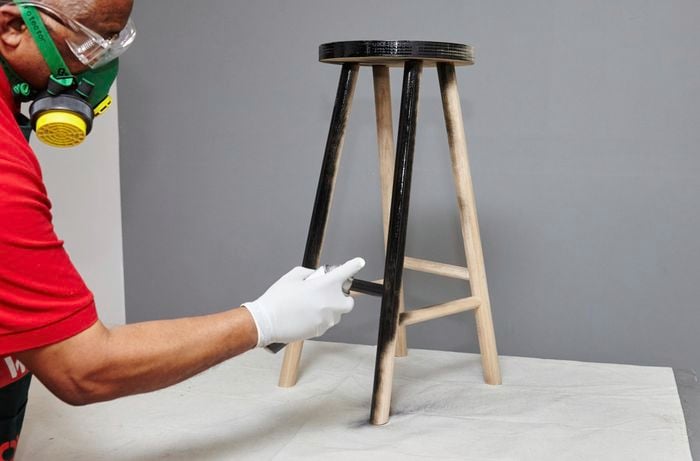

19Paint the stool

You can choose whatever colour paint you want, depending on the look you're going for, we chose black. Paint your stool in a well ventilated room and then let it dry.
DIY Step Image - D.I.Y. bar stools . Blob storage upload.

20Put the stool in place

And there you have it, a fantastic looking bar stool that you made yourself. Make as many as you need and find a place for them at the kitchen bench, a bar or outdoor entertaining area.
DIY Step Image - D.I.Y. bar stools . Blob storage upload.
