PROLAM

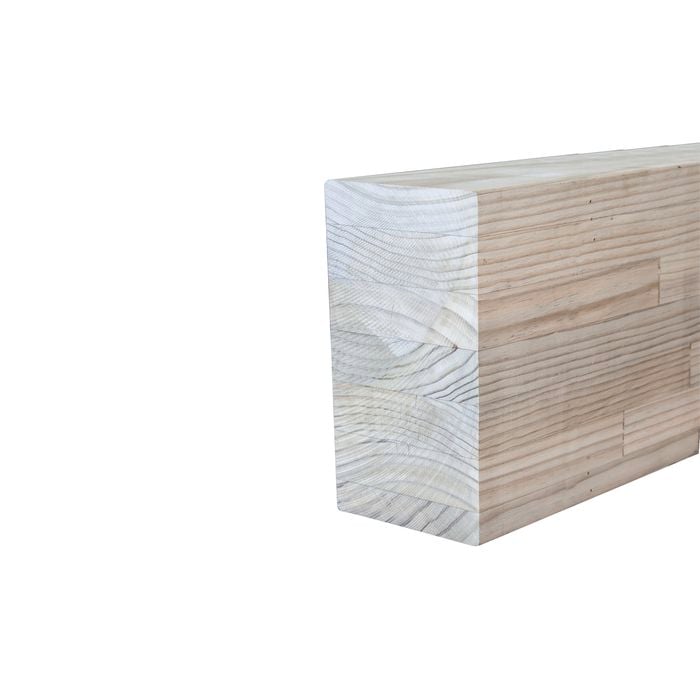

PROLAM 190 x 63mm PLVL8 CCA H3.2 KD Visual Beam - Per Linear Metre

No reviews yet

I/N: 0268794

PROLAM 190 x 63mm PLVL8 CCA H3.2 KD Visual Beam - Per Linear Metre

$108.92

per 1 linear metre
In-store only

How to purchase

Special Order

This item can only be purchased in-store from the Special Orders desk. Learn more(opens in a new tab)

Click & Collect

Select a store for availability

In-store

Select a store for availability

Delivery

Enter postcode or suburb for estimate

Features

  • Can be stained or painted.
  • Exterior Treatment
  • Can be purchased with different finishes including Bandsawn, Sanded + Sealed, Preprimed.

Premium grade Beam H3.2 treated for use within the building envelope. Prolam® is engineered timber with unsurpassed performance, and is more stable and resistant to timber movement.

Details

Dimensions



Width

Height

Length

Product

190mm63mm1mm

Package

63mm190mm1000mm

Weight

Easy To Carry

Total Weight 5kg

Specifications

Colour
Other
Model Name
PROLAM Visual Beam PLVL8 CCA H3.2 KD 190x63mm x per linear metre
Volume
.01L
Structural Grade
PL8
Common Uses
Rafters + Lintels
Treatment Type
H3.2
Timber Species
Radiata Pine
Maintenance
Product must be re coated every 1 year.

Warranty & Returns

"This laminated treated product must be protected
from the elements until it is sealed. Timber naturally
absorbs moisture from the surrounding environment.
This can cause the product to alter dimensionally.
Sealing the product with a good quality paint or
stain system dramatically reduces the incidence of
dimensional change and increases longevity.
Recommended procedure:
1. Fill nail holes with an exterior grade woodfiller.
2. Sand back until surface is smooth and
completely free from dirt and dust.
3. If painting, prime all surfaces and cut ends and
joints with a good quality alkyd primer and allow
drying as per paint manufacturer’s instructions.
4. Apply two full coats of a premium brand acrylic
or enamel topcoat.
5. If staining apply three full coats of a premium
stain including cut ends and joints.
6. Product must be recoated every year.
NOTE: Dark colours are not recommended. As
the timber will move more with the environmental
changes, resin bleeding, distortion and cracking
may occur.
NO WARRANTY APPLIES TO ANY PRODUCT
THAT HAS NOT BEEN KEPT DRY, OR HAS NOT
BEEN PAINTED AS RECOMMENDED ABOVE."

We will gladly assist with returns and exchanges of this product in accordance with our returns and exchanges policy.

Return Policy

Installation

"Installation
Qualifications
Carry out the installation of the laminated engineered timber work with experienced and competent
tradesmen familiar with the materials and techniques specified.
Deliver and handle members so no structural damage occurs, corners and edges are not damaged,
or surfaces marked or stained.Handle laminated timber products with nylon strops or similar to
prevent damage.
Erection
Carry out the erection of laminated and associated support framing for houses and similar structures
to the requirements of NZS 3604. Comply with NZBC B1/VM1, 6.0 Timber. Refer to PROWOOD
guidelines for the installation of laminated structural framing. Prop long length beams and lintels at
the mid span until the moisture content has reached a suitable level for the application of internal
linings.
Co-ordination
Refer to all drawings in booklet download to ensure details and fixings required are provided for in the laminated
structural work."
