- The self levelling multiline laser projects 3 bright 360° horizontal and vertical lines (independently or as a cross), up to 40m (100m w/ detector)
- Off Last Mode: For added convenience the 3 lines appear in previous state prior to unit being turned off
- Pivotable Bracket With Magnets: For safe sticking to metal studs
- Pendulum Lock: To help prevent damage to internal components
- 18V XR Battery Compatibility: Taking advantage of the well known and distributed 18V battery system of DEWALT – making it compatible as well for the line laser system
The DCLE34031D1 includes best-in-class green beam diode technology, which ensures optimum visibility on the job site - even in the most challenging of environments.
The Multiline Laser's compact size and outstanding working range makes it suitable for a variety of first-fix and drywall construction applications, including the suspension of ceilings, positioning of partition walls and transferring layouts from floor to ceiling.
Specifications:
Voltage: 18V
Beam color: Green
Line diagram: 1 Horizontal, 1 Vertical
Laser diode: Class 2, 510-530nm
Working range:
Alone: 40m
With detector: 100m
Pulse mode: Yes, permanent
Accuracy line: ±3mm @ 10m
Compensation range: ±4°
Levelling time: ≤5s
IP Rating: IP54
Drop test: 1m
Mounting thread: 1/4" & 5/8" (integrated in bracket)

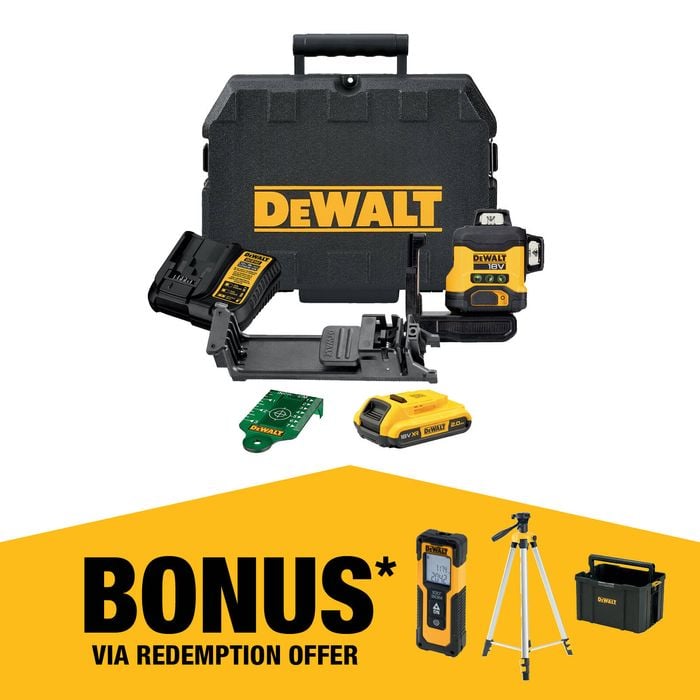

Kit Includes:
18V 2.0AH XR Li-Ion Cordless Slide Battery, Multi Voltage Charger, Mounting Bracket, Green Target Card and Blowmould Case.
Redemption offer; redeem a 1 x DE0881T-XJ 1/4" Tripod + DWHT77100-XJ Laser Distance Measure 30M 100FT + DWST1-71228 TSTAK Tote via online redemption. Visit GUARANTEEDTOUGH.co.nz for all applicable models, claims, terms & conditions. Offer valid on purchases made between 01.06.2025 to 31.07.2025. Redeemable up to 14 days after promotion ends.
Terms and Conditions Apply. Redemption offer applies to total spend minimum $2000 including GST in single transaction across the DEWALT range of Power Tools, Hand Tools, Accessories & Storage, Benchtop and Outdoor Power Equipment (OPE) products between 29/05/2025 & 11:59pm 31/07/2025. Redeem between 29/05/2025 to 11:59pm 14/08/2025. Retain receipt. Redemption available while stocks last and only at participating stores, only 200 safety pack redemptions available. Not available in conjunction with any other offers.
